Hi.
Since audirevana didn’t detect my system memory, I couldn’t configure the preloaded memory. How do I solve this?This seems to be causing problems when I play upsampling music.
Thanks!
here is the debug info
Audirvana Studio 2.10.1 (21001)
Windows 11 (26100) x86_64 with 0GB physical RAM
Connected account of : Lichung Liu
NETWORK
Status: available
Available network interfaces:
乙太網路 ({80d617fb-577b-4f24-a51a-f98c05df8bff}) is PUBLIC
Windows Defender Firewall status for this instance of Audirvana Studio
Active profile types: all
Private profile:
Firewall: enabled
Inbound: blocked
Outbound: allowed
Notifications: enabled
Public profile:
Firewall: enabled
Inbound: allowed
Outbound: allowed
Notifications: enabled
SIGNAL PROCESSING:
Polarity Inversion:
Globally: OFF
Per track: ON
Effects plugins NOT ACTIVE
UPSAMPLING:
r8brain not in use
r8brain filter parameters
Bandwidth = 99.5%
Stop band attenuation 218dB
Phase linear
AUDIO VOLUME:
Max allowed volume: 100
Replay Gain: None
SW volume control: OFF
LIBRARY SETTINGS:
Sync list: 1 folders
AUTO: D:\music
Sync folders at startup: YES
Sort and display order: zh_Hant_TW
Library database path: C:\Users\Lichung\AppData\Local\Packages\Audirvana.Audirvana-4118-9684-d80dbb7827cd_q3nymrkmej12j\LocalCache\Local\Audirvana\Audirvana\AudirvanaDatabase.sqlite
Local audio files fingerprinting
Tracks with no MBID: 9121
Remote Control server:
Listening on 10.0.0.229 on port 49709
ACTIVE STREAMING SERVICES
TIDAL: Connected as PREMIUM
APPEARANCE SETTINGS:
UI theme: dark
Font size: regular
Language: System language
Show album covers in tracks list: yes
Source list sorted:
Local
Streaming
My Music
Radios
Podcasts
Startup view: Local Library: Albums
Show local extended in source list: no
Use media keys: yes
Use media keys for volume control: yes
Use legacy Bonjour protocol: no
Number of paired remotes: 1
Remote pairing code required: yes
Screen saver disabled: no
=================== AUDIO DEVICE ========================
Active method: Local
Max. memory for audio buffers: 256MB
Local Audio Engine: ASIO 2
Driver version 2
Use max I/O buffer size: ON
Preferred device:
Combo384 1.10
Model UID:Combo384 1.10
UID:Combo384 1.10
Active Sample Rate: 2822.4kHz
Bridge settings:
Sample rate limitation: none
Sample rate switching latency: none
Limit bitdepth to 24bit: OFF
Mute during sample rate change: OFF
Selected device:Combo384 1.10
Manufacturer:
Model name: Combo384 1.10
Model UID: Combo384 1.10
UID: Combo384 1.10
17 available sample rates up to 45158400Hz
44100
48000
88200
96000
176400
192000
352800
384000
705600
768000
1411200
1536000
2822400
5644800
11289600
22579200
45158400
Volume Control
Physical: No
Virtual: No
Max volume alert: Enabled
MQA capability
Auto-detect MQA devices: No
Not automatically detected, user set to not MQA
DSD capability
Raw DSD (msb)
Device audio channels
Preferred stereo channels L:0 R:1
Channel bitmap: Ox3, layout:
Channel 0 mapped to 0
Channel 1 mapped to 1
Audio channels in use
Number of channels: 2
Use as stereo device only: No
Simple stereo device: Yes
1 output streams:
Number of active channels: 2, in 1 stream(s)
Channel #0 :Stream 0 channel 0
Channel #1 :Stream 0 channel 1
2 ch Integer PCM 32bit little endian 44.1kHz
2 ch Integer PCM 32bit little endian 48kHz
2 ch Integer PCM 32bit little endian 88.2kHz
2 ch Integer PCM 32bit little endian 96kHz
2 ch Integer PCM 32bit little endian 176.4kHz
2 ch Integer PCM 32bit little endian 192kHz
2 ch Integer PCM 32bit little endian 352.8kHz
2 ch Integer PCM 32bit little endian 384kHz
2 ch Integer PCM 32bit little endian 705.6kHz
2 ch Integer PCM 32bit little endian 768kHz
2 ch Integer PCM 32bit little endian 1411.2kHz
2 ch Integer PCM 32bit little endian 1536kHz
2 ch DSD 8bit big endian in 8bit chunk 2822.4kHz
2 ch DSD 8bit big endian in 8bit chunk 5644.8kHz
2 ch DSD 8bit big endian in 8bit chunk 11289.6kHz
2 ch DSD 8bit big endian in 8bit chunk 22579.2kHz
2 ch DSD 8bit big endian in 8bit chunk 45158.4kHz
Local devices found : 2
Device #0: Combo384 ASIO 1.03
Manufacturer:
Model UID: Combo384 ASIO 1.03
UID: Combo384 ASIO 1.03
Model name: Combo384 ASIO 1.03
Device #1: Combo384 1.10
Manufacturer:
Model UID: Combo384 1.10
UID: Combo384 1.10
Model name: Combo384 1.10
UPnP
UPnP network interface
Available Network interfaces:
乙太網路
UPnP devices found : 0
Chromecast
Chromecast devices found : 0
Welcome @LichungLiu,
What an odd problem. It seems there is something wrong with your Windows installation.
Just to double check:

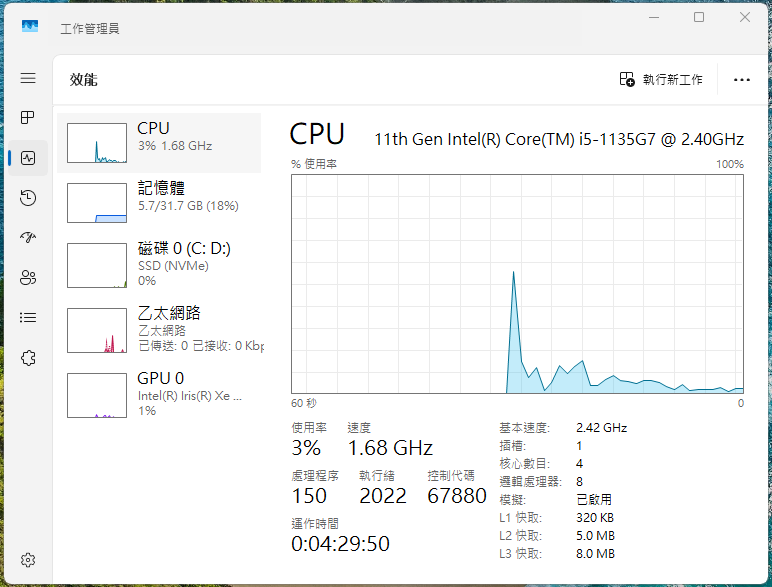

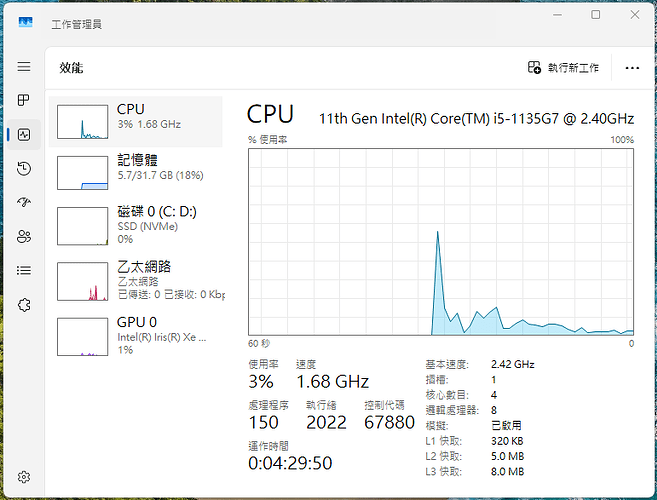

How much memory does Windows itself report? (Look in Windows task manager/performance/memory).
Do you have problems with other programs not recognizing RAM in Windows too?
This is the first time I see a problem like this. Sorry but I don’t know what to think of it.
I will signal @Antoine (official support) here. Maybe he can shine a light on it. He will probably react during working hours (monday - Friday). You can also send a mail to [email protected]
Here is the problem that @AndyLubke is addressing from your debug information report, note the bold text below:
Maybe you need to reinstall Audirvāna?
Thank you for your concern.
I’ve reinstalled windows11 and audirvana but still the same result.
It works fine when I use another computer, but on this one I modified the fanless case and power supply in order to run Audirvana.
The thing is:

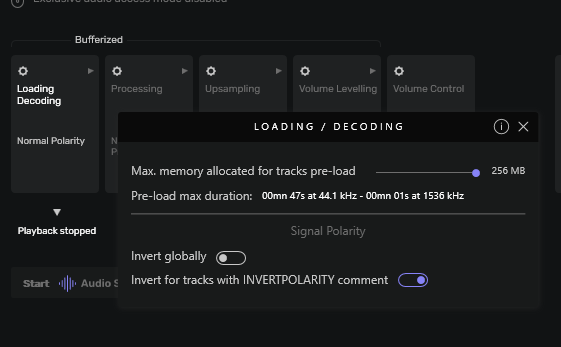

Why Audirvana thinks you have a windows 11 system with 0gb of memory?? that is why it put the lowest memory buffer size… 256mb and can’t be moving forward.
First, no one can have a zero memory on a computer…
Did you buy that memory stick elsewhere…
have you tried to remove your memory from the computer
and add them back again to see?
Then again, why it is only Audirvana buggy with that when all other softwares are good with it??
Monday work day coming soon
wait for @Antoine to see
It is highly doubtful that the Audirvāna team will be able to help you when the platform has been modified… You will need to prove that it can run another audiophile digital-audio application, especially since you already know that Audirvāna is operational on another computer… What do you think the Audirvāna team can help you with…? This is a bizarre case and if AndyLubke has never seen this behavior, it is a gross anomaly which points to some form of damage to the computer platform or memory bus or the physical memory.
My intel nuc modification only has a fanless case and uses a linear power supply, without modifying the computer platform or memory bus or the physical memory.
The strange thing is that I originally plugged in two 16GB memories, but the pre-loaded memory can be adjusted by plugging in only one 16GB stick.
I currently have a 16gb stick plugged in, and I would be very grateful if this weird problem could be solved.
Thanks!
So with one of the 16 GB RAM sticks plugged in Audirvana works, recognizes the memory and you can adjust the preload buffer in Audirvana?
I think you discovered the problem yourself. This is not something Audirvana can fix. There seems to be some sort of hardware problem. Did you try another (new) RAM stick instead of the faulty one? Did you try to place the RAM sticks in different slots or switch them? If you use your NUC only for music 16GB RAM is more than plenty. Maybe you can live with that?
It is always wise in these cases to do a thorough diagnosis of the RAM in your computer by using the memory diagnostic tool in windows:
How to Use Windows Memory Diagnostic
Again: The root cause of the problem is in your hardware/computer configuration and the fix must be found there. This problem IMO can not be solved in Audirvana.
2 Likes
The fact is, that you handled the computer system platform by modifying the fanless enclosure and changed the power-supply… These variables along with potentially defective RAM card or other RAM pairing disparagement, or potential slot damage, and the fact that Audirvāna system operations are normal when you have a single 16GB RAM card installed puts the responsibility on you to solve…
You are better served by seeking advice from the hardware platform manufacturer, Intel and Microsoft… Maybe the Audirvāna community can provide insights, however you must temper your expectations… It appears you have identified the source of the problem yourself… The majority of help and insights you will receive from the Audirvāna community forum will be in the software configuration and the synergistic relationship with your DAC and network synergies.
Hi @LichungLiu ,
Some additional information. I also have a modified NUC (put it into a fanless case and replaced the external switching psu brick with a linear one). In my case everything works well with Audirvana.
Audirvana sees my 32 GB RAM perfectly and I can adjust the preload buffer in Audirvana.
Specifics:
- NUC i58BEH
- 32 GB RAM (2 sticks of 16 GB RAM)
- 500 TB internal SSD

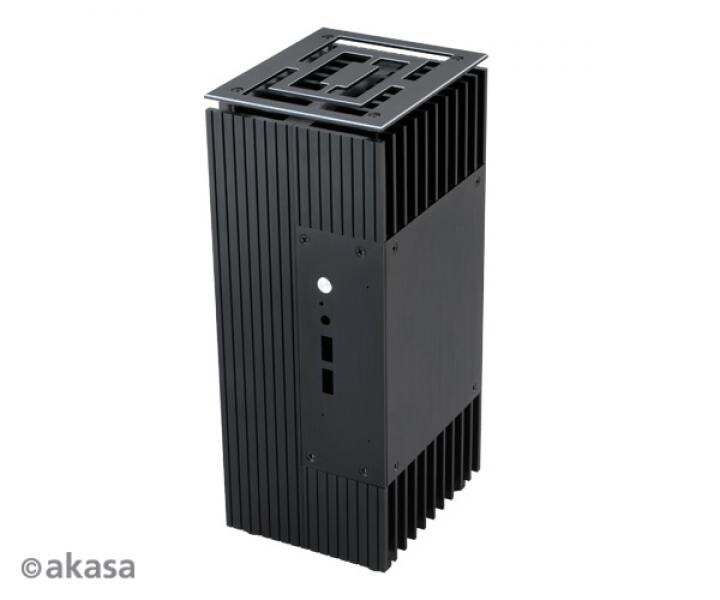

- AKASA Turin fanless case
- OS: Windows 11 pro
- Installed: Audirvana Studio, Audirvana Origin, Foobar2000
- Audiophonics Linear external power supply (LPSU100 19V 5.25A 100W)
- External DACS (via USB): Topping DX9, Holo Audio Cyan2 (both played via ASIO)
- Local Music library is on a external USB SSD and on my NAS
This strengthens my opinion that there must be something wrong with your configuration/hardware. The fix of that problem lies outside Audirvana.
I understand this does not give a solution for your problem, but at least I hope it points to some logical direction where to search.
Could this be a issue with mismatched ram modules? Or is there a setting in the BIOS or windoz itself to enable/disaable the support of multiple simms/dimms/sticks?
I remember messing with BIOS for memory setup when I built my ASUS watercooled, de-lid, overclocked i8700K windoz 10 now 11 years ago…
Hi @LichungLiu,
Wehn you are on the audio settings page, what do you see under the Computer section under Windows 11 (26100)?
Does it display the correct amount of RAM your computer can use?
I agree that this issue involves a wide range of aspects, so I have also considered the bios settings and hardware.
Maybe I’ll check my existing memory with Windows Memory Diagnostic. Thanks!
I am using memory from the well-known manufacturer Kingston, but I suspect it is a memory compatibility or pairing issue.
I have purchased two Micron 16gb memories and will compare and test them after receiving them.
Thanks!
1 Like
Hi.
If I plug in a 16gb memory, audirvana will display 16gb normally.
If I insert two 16gb sticks, it will become 0.
