Bonjour,
Pourquoi le DoP sur Mac M1 ne fonctionne pas SVP? Je ne comprends pas.
C’est bien Audirvana, le lecteur, qui encapsule le signal DSD dans une enveloppe PCM, non?
Ce signal avec le passeport PCM peut passer le filtre du système et peut être transmis au DAC par USB normalement.
Le DAC reconstitue le signal DSD et le traite comme tel.
Merci de vos explications.
Can you paste the debug info here?
Audirvana Studio 1.13.3 (11303)
macOS Version 12.5 (assemblage 21G72) with 16GB physical RAM
Connected account of : David Bergeret
SIGNAL PROCESSING:
Polarity Inversion:
Globally: OFF
Per track: ON
Effects plugins ACTIVE in realtime mode with legacy macOS API
AU plugin #0: Effect - FLUX SE StereoToolV3 ()
AU plugin #1: None
AU plugin #2: None
AU plugin #3: None
UPSAMPLING:
r8brain not in use
r8brain filter parameters
Bandwidth = 99.5%
Stop band attenuation 218dB
Phase linear
AUDIO VOLUME:
Max allowed volume: 100
Replay Gain: None
SW volume control: OFF
LIBRARY SETTINGS:
Sync list: 9 folders
AUTO: /Volumes/Itune/
AUTO: /Volumes/music/Ambient Lounge
AUTO: /Volumes/music/Blues Jazz
AUTO: /Volumes/music/BOF
AUTO: /Volumes/music/Classical
AUTO: /Volumes/music/Cold Wave - World
AUTO: /Volumes/music/Electronic
AUTO: /Volumes/music/Lossless
AUTO: /Volumes/music/Pop Rock
iTunes/Music library synchronization: not synchronized
Library database path: /Users/Music/Library/Application Support/Audirvana/AudirvanaDatabase.sqlite
Remote Control server:
Listening on fe80::4cf4:6eff:febf:b6cd%anpi0 on port 49205
ACTIVE STREAMING SERVICES
Qobuz: Connected as Qobuz Studio
=================== AUDIO DEVICE ========================
CoreAudio audio path, buffer I/O frame size: 512
Max. memory for audio buffers: 8658MB
Exclusive access: Enabled
Integer mode: Enabled
Preferred device:
C-MEDIA ELECTRONICS INC. SPEAKER
Model UID:Hegel USB Audio B:0D8C:0316
UID:AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1
Currently playing in Integer Mode:
Device: 2ch Non-mixable linear PCM Interleaved 24bits little endian Signed Integer, 6 bytes per frame 176.4kHz
Active Sample Rate: 176.4kHz
Hog Mode is on
Bridge settings:
Sample rate limitation: none
Sample rate switching latency: none
Limit bitdepth to 24bit: ON
Mute during sample rate change: OFF
Selected device:
Local audio device
ID 0x2c Speaker
Manufacturer: C-Media Electronics Inc.
Model Name: C-Media Electronics Inc. Speaker
Model UID: Hegel USB Audio B:0D8C:0316
UID: AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1
6 available sample rates up to 192000Hz
44100
48000
88200
96000
176400
192000
Audio buffer frame size : 58 to 4096 frames
Current I/O buffer frame size : 512
Volume Control
Physical: No
Virtual: No
MQA capability
Auto-detect MQA devices: No
Not a MQA device, user set to not MQA
DSD capability: DSD via PCM 1.1
Device audio channels
Preferred stereo channels L:1 R:2
Channel bitmap: Ox3, layout:
Channel 0 mapped to 0
Channel 1 mapped to 1
Audio channels in use
Number of channels: 2
Use as stereo device only: No
Simple stereo device: Yes
1 output streams:
Number of active channels: 2, in 1 stream(s)
Channel #0 :Stream 0 channel 0
Channel #1 :Stream 0 channel 1
Stream ID 0x2d 2 channels starting at 1
18 virtual formats:
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 192kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 176.4kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 96kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 88.2kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 48kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
24 physical formats
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
Local devices found : 2
Device #0: ID 0x2c Speaker Manufacturer: C-Media Electronics Inc. Model UID: Hegel USB Audio B:0D8C:0316 UID: AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1 Model Name: C-Media Electronics Inc. Speaker
Device #1: ID 0x30 Mac mini Speakers Manufacturer: Apple Inc. Model UID: Speaker UID: BuiltInSpeakerDevice Model Name: Apple Inc. Mac mini Speakers
UPnP devices found : 1
Device #0: ID 0x0 RX-A2040 B65EE9 UID: uuid:5f9ec1b3-ed59-1900-4530-00a0deb65ee9 Location: http://192.168.1.11:8080/MediaRenderer/desc.xml
Remove the plug-ins and try again. For DoP to work, there should be no processing on.
…
DSDxxx playback will automatically bypass the plug-in… I have a HTRF plug-in inserted for DXD 352.8kHz playback, and I don’t need to remove it when playing my binaural DSDxxx files… Maybe the plug-in is interfering, but I doubt it…
Turn-off “Integer Mode” … make sure your firmware is up to date… Also, it looks like you may be limited to playing DSD64 on the Hengel device because the maximum PCM sample-rate it supports for DoP 1.1 is 176.4kHz.
This ‘C-Media Speaker’ thing is disconcerting… is this the USB chip used in the Hengel device?
From the Hengel USB page:
The USB connector found on Hegel amplifiers and digital to analog converters opens a whole new world for music and movie lovers. This functionality allows you to easily connect your Hegel product to any computer with a reasonably new Windows or Mac Os operating system installed. The most common Linux systems will also work. The Hegel USB technology is actually a computer sound card, or audio controller if you like.
With the Hegel product connected, all sounds usually played through your computer will now be played through the Hegel. This means that, unlike let’s say a music streamer, a Hegel DAC will not only play your music files but also any sounds that come out of the computer, including Youtube videos or Skype chats. What can it play? The Hegel will, when connected, take over all sounds. This means you can play music, video, computer games, internet radio or hear the occasional “ding” when you press and hold the Windows ANY-key for too long. Everything with superb Hegel sound.M
The plugin is disabled, and Interger Mode off. No change.
I can’t Dop in 1.0 or 1.1.
CMedia is the company producing the components for a lot of electronic devices.
Reduce the pre-load cache to 4000MB.
No change with these settings (DoP 1.0 and 1.1):
Audirvana Studio 1.13.3 (11303)
macOS Version 12.5 (assemblage 21G72) with 16GB physical RAM
Connected account of : David Bergeret
SIGNAL PROCESSING:
Polarity Inversion:
Globally: OFF
Per track: ON
Effects plugins NOT ACTIVE
UPSAMPLING:
r8brain not in use
r8brain filter parameters
Bandwidth = 99.5%
Stop band attenuation 218dB
Phase linear
AUDIO VOLUME:
Max allowed volume: 100
Replay Gain: None
SW volume control: OFF
LIBRARY SETTINGS:
Sync list: 9 folders
AUTO: /Volumes/Itune/
AUTO: /Volumes/music/Ambient Lounge
AUTO: /Volumes/music/Blues Jazz
AUTO: /Volumes/music/BOF
AUTO: /Volumes/music/Classical
AUTO: /Volumes/music/Cold Wave - World
AUTO: /Volumes/music/Electronic
AUTO: /Volumes/music/Lossless
AUTO: /Volumes/music/Pop Rock
iTunes/Music library synchronization: not synchronized
Library database path: /Users/Music/Library/Application Support/Audirvana/AudirvanaDatabase.sqlite
Remote Control server:
Listening on fe80::4cf4:6eff:febf:b6cd%anpi0 on port 49205
ACTIVE STREAMING SERVICES
Qobuz: Connected as Qobuz Studio
=================== AUDIO DEVICE ========================
CoreAudio audio path, buffer I/O frame size: 4096
Max. memory for audio buffers: 3944MB
Exclusive access: Enabled
Integer mode: Disabled
Preferred device:
C-MEDIA ELECTRONICS INC. SPEAKER
Model UID:Hegel USB Audio B:0D8C:0316
UID:AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1
Currently playing in standard 32bit float mode
Device: 2ch Mixable linear PCM Interleaved 32bits little endian Signed Float, 8 bytes per frame 176.4kHz
Active Sample Rate: 176.4kHz
Hog Mode is on
Bridge settings:
Sample rate limitation: none
Sample rate switching latency: none
Limit bitdepth to 24bit: ON
Mute during sample rate change: OFF
Selected device:
Local audio device
ID 0x2c Speaker
Manufacturer: C-Media Electronics Inc.
Model Name: C-Media Electronics Inc. Speaker
Model UID: Hegel USB Audio B:0D8C:0316
UID: AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1
6 available sample rates up to 192000Hz
44100
48000
88200
96000
176400
192000
Audio buffer frame size : 58 to 4096 frames
Current I/O buffer frame size : 4096
Volume Control
Physical: No
Virtual: No
MQA capability
Auto-detect MQA devices: No
Not a MQA device, user set to not MQA
DSD capability: DSD via PCM 1.0
Device audio channels
Preferred stereo channels L:1 R:2
Channel bitmap: Ox3, layout:
Channel 0 mapped to 0
Channel 1 mapped to 1
Audio channels in use
Number of channels: 2
Use as stereo device only: No
Simple stereo device: Yes
1 output streams:
Number of active channels: 2, in 1 stream(s)
Channel #0 :Stream 0 channel 0
Channel #1 :Stream 0 channel 1
Stream ID 0x2d 2 channels starting at 1
18 virtual formats:
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 192kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 176.4kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 96kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 88.2kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 48kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
24 physical formats
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
Local devices found : 2
Device #0: ID 0x2c Speaker Manufacturer: C-Media Electronics Inc. Model UID: Hegel USB Audio B:0D8C:0316 UID: AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1 Model Name: C-Media Electronics Inc. Speaker
Device #1: ID 0x30 Mac mini Speakers Manufacturer: Apple Inc. Model UID: Speaker UID: BuiltInSpeakerDevice Model Name: Apple Inc. Mac mini Speakers
UPnP devices found : 1
Device #0: ID 0x0 RX-A2040 B65EE9 UID: uuid:5f9ec1b3-ed59-1900-4530-00a0deb65ee9 Location: http://192.168.1.11:8080/MediaRenderer/desc.xml
What’s the file you’re trying to play? Try again with integer mode on.
Queen, A Kind of Magic and I’ve tried also Dead Can Dance, Aion.
Integer Mode Off or On gives the same result: no sound output.
Which Hegel model you have? Try also with a file downloaded from 2L.
I have a HD30. There is no output sound from the DSF files.
There is a SCRRRRCHHHH from my speakers.
Try to dont’ limit your DAC to 24bits depth
Hmm, in technical specifications it doesn’t mention DSD, even though above in the text i states that it “accepts DSD signal”. Whatever that means. I suspect that the DAC converts it to PCM on the fly. Maybe it only supports base rate DSD.
You can try with lower bitrate DSD, for example DSD64. Also ask Hegel about the DoP support.
The DAC itself is limited to DSD 128 max.
It is suposed to decode and play the signal it receives from its feeder, which is Audirvana.
I can play DSF files 64/128 and 256 with these settings (Plugin Active, Integer Mode ON and DoP 1.1)
Audirvana Studio 1.13.3 (11303)
macOS Version 12.5 (assemblage 21G72) with 16GB physical RAM
Connected account of : David Bergeret
SIGNAL PROCESSING:
Polarity Inversion:
Globally: OFF
Per track: ON
Effects plugins ACTIVE in realtime mode with legacy macOS API
AU plugin #0: Effet - FLUX SE StereoToolV3 ()
AU plugin #1: None
AU plugin #2: None
AU plugin #3: None
UPSAMPLING:
r8brain not in use
r8brain filter parameters
Bandwidth = 99.5%
Stop band attenuation 218dB
Phase linear
AUDIO VOLUME:
Max allowed volume: 100
Replay Gain: None
SW volume control: OFF
LIBRARY SETTINGS:
Sync list: 10 folders
AUTO: /Users/Music/Desktop/2L Files
AUTO: /Volumes/Itune/
AUTO: /Volumes/music/Ambient Lounge
AUTO: /Volumes/music/Blues Jazz
AUTO: /Volumes/music/BOF
AUTO: /Volumes/music/Classical
AUTO: /Volumes/music/Cold Wave - World
AUTO: /Volumes/music/Electronic
AUTO: /Volumes/music/Lossless
AUTO: /Volumes/music/Pop Rock
iTunes/Music library synchronization: not synchronized
Library database path: /Users/Music/Library/Application Support/Audirvana/AudirvanaDatabase.sqlite
Remote Control server:
Listening on 127.0.0.1 on port 55076
ACTIVE STREAMING SERVICES
Qobuz: Connected as Qobuz Studio
=================== AUDIO DEVICE ========================
CoreAudio audio path, buffer I/O frame size: 512
Max. memory for audio buffers: 3944MB
Exclusive access: Enabled
Integer mode: Enabled
Preferred device:
C-MEDIA ELECTRONICS INC. SPEAKER
Model UID:Hegel USB Audio B:0D8C:0316
UID:AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1
Active Sample Rate: 192kHz
Hog Mode is off
Bridge settings:
Sample rate limitation: none
Sample rate switching latency: none
Limit bitdepth to 24bit: ON
Mute during sample rate change: OFF
Selected device:
Local audio device
ID 0x2c Speaker
Manufacturer: C-Media Electronics Inc.
Model Name: C-Media Electronics Inc. Speaker
Model UID: Hegel USB Audio B:0D8C:0316
UID: AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1
6 available sample rates up to 192000Hz
44100
48000
88200
96000
176400
192000
Audio buffer frame size : 58 to 4096 frames
Current I/O buffer frame size : 512
Volume Control
Physical: No
Virtual: No
MQA capability
Auto-detect MQA devices: No
Not a MQA device, user set to not MQA
DSD capability: DSD via PCM 1.1
Device audio channels
Preferred stereo channels L:1 R:2
Channel bitmap: Ox3, layout:
Channel 0 mapped to 0
Channel 1 mapped to 1
Audio channels in use
Number of channels: 2
Use as stereo device only: No
Simple stereo device: Yes
1 output streams:
Number of active channels: 2, in 1 stream(s)
Channel #0 :Stream 0 channel 0
Channel #1 :Stream 0 channel 1
Stream ID 0x2d 2 channels starting at 1
18 virtual formats:
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 192kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 176.4kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 96kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 88.2kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 48kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
24 physical formats
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
Local devices found : 2
Device #0: ID 0x2c Speaker Manufacturer: C-Media Electronics Inc. Model UID: Hegel USB Audio B:0D8C:0316 UID: AppleUSBAudioEngine:C-Media Electronics Inc.:Hegel USB Audio B:2200000:1 Model Name: C-Media Electronics Inc. Speaker
Device #1: ID 0x30 Mac mini Speakers Manufacturer: Apple Inc. Model UID: Speaker UID: BuiltInSpeakerDevice Model Name: Apple Inc. Mac mini Speakers
UPnP devices found : 1
Device #0: ID 0x0 RX-A2040 B65EE9 UID: uuid:5f9ec1b3-ed59-1900-4530-00a0deb65ee9 Location: http://192.168.1.11:8080/MediaRenderer/desc.xml
…
You debug report shows the DAC only supporting PCM to 192kHz,…
The DoP 1.1 carrier signal for DSD64 is 176.4kHz and the DoP 1.1 carrier signal for DSD128 is 352.8kHz
I recommend increasing your pre-load buffer back to where you had it for flawless DSD64 playback.
Also, if you are playing .dsf files this alludes to these being extracted from SACD ISO files… Be aware these files can be corrupted from a bad extraction process and they must be extracted to the native DSD64 sample-rate.
… @bitracer @icekill @RunHomeSlow
This looks like the chip in the Hegel device:
If this is the device in the HD30 there is something wrong… It seems that it is not being fully exploited in this Hegel device, or there is a problem with “Interger Mode” being able to usurp the C-Media device control firmware…

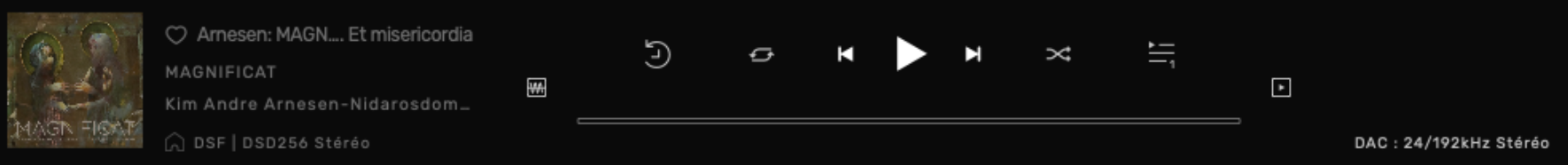

It’s not OK… You should see the DAC as running as DSD256 or given the max PCM sample-rate of 192kHz the Hegel is showing in the debug report, you would see the DAC running at DSD64 if the file is DSD64
Hegel is not in the numbers game. It’s a PCM only DAC.
Nothing wrong with letting Audirvana down convert to PCM and play it like this.
