Hi Res file downsampled to 48k on V3.5.5 from Audi/Tidal

🖥️ Audirvāna Device connectivity
1

Hi. All my Flac MQA Hi res files show up as 48k on my Mac Digital Preamp. If I play the files through Tidal, they show up correctly as Hi Res.

On the bottom left of the AV screen, it says FLAC 24/96, and the bottom right it says, 24/28.

Tidal is set to master and exclusive mode.

Thanks!

2

I’m going to assume you mean 24/48 not 24/28, You must have your DAC set to MQA decoder. So you have your DAC doing the unfold and restoring the file to 24/96

If you set your DAC settings to non MQA in Audirvāna preferences the unfolding will be done by Audirvāna

3

Could you share the Debug info?

MQA is 24/48. It will be decoded to 24/96.
Depending on the settings in Audirvana the decoding takes place in Audirvana, the DAC or not at all.

Is your DAC a decoder or a renderer?

Edit:
If you mean the McIntosh D1100 as a digital preamp. As far as I can see it doesn’t support MQA. Which means Audirvana has to do the decoding. In the Audirvana settings, the DAC must be set as a non-MQA device.

4

Thanks for helping!

My DAC is a McIntosh D150, non MQA. Tidal is set to do the unfolding.

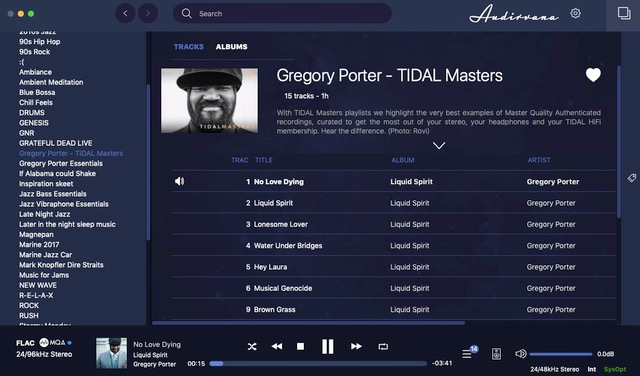

Audirvana screen shot

Audirvana Mac Version 3.5.50 (3580)
macOS 10.14.6 with 8192MB RAM

Registered to brendan a lambe

SIGNAL PROCESSING:

Polarity Inversion:
	Globally: OFF
	Per track: ON
Effects plugins NOT ACTIVE

UPSAMPLING:
SoX not in use
SoX filter parameters
Bandwidth at 0dB = 99.5
Filter max length = 30000
Anti-aliasing = 100
Phase = 66

AUDIO VOLUME:
Max allowed volume: 100
Replay Gain: None
SW volume control: OFF

LIBRARY SETTINGS:
Sync list: 0 folders
iTunes/Music library synchronization: not synchronized
Library database path: /Users/Brendan MacBook Air/Library/Application Support/Audirvana/AudirvanaPlusDatabaseV2.sqlite

ACTIVE STREAMING SERVICES
TIDAL: Connected as HIFI

=================== AUDIO DEVICE ========================

CoreAudio audio path, buffer I/O frame size: 512

Max. memory for audio buffers: 5120MB

Local Audio Engine:
Exclusive access: Enabled
Integer mode: Enabled

Preferred device:
McIntosh-HD HS USB Audio
Model UID:McIntosh-HD HS USB Audio:2AFD:0002
UID:AppleUSBAudioEngine:McIntosh:D150:14200000:2

Currently playing in Integer Mode:
Device: 2ch Non-mixable linear PCM Interleaved 24bits little endian Signed Integer, 6 bytes per frame 48kHz

Active Sample Rate: 48kHz
Hog Mode is on

Bridge settings:
Sample rate limitation: none
Sample rate switching latency: none
Limit bitdepth to 24bit: OFF
Mute during sample rate change: OFF

Selected device:
Local audio device
ID 0x42 McIntosh-HD HS USB Audio Manufacturer:McIntosh
Model UID:McIntosh-HD HS USB Audio:2AFD:0002 UID:AppleUSBAudioEngine:McIntosh:D150:14200000:2

9 available sample rates up to 384000Hz
32000
44100
48000
88200
96000
176400
192000
352800
384000
Audio buffer frame size : 29 to 4096 frames
Current I/O buffer frame size : 512
Volume Control
Physical: No
Virtual: Yes
MQA capability
Auto-detect MQA devices: No
Not a MQA device, user set to MQA Decoder
DSD capability: Unhandled
Device audio channels
Preferred stereo channels L:1 R:2
Channel bitmap: Ox3, layout:
Channel 0 mapped to 0
Channel 1 mapped to 1

Audio channels in use
Number of channels: 2
Use as stereo device only: No
Simple stereo device: Yes

1 output streams:
Number of active channels: 2, in 1 stream(s)
Channel #0 :Stream 0 channel 0
Channel #1 :Stream 0 channel 1

Stream ID 0x43 2 channels starting at 1
36 virtual formats:
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 384kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 352.8kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 192kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 176.4kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 96kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 88.2kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 48kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 44.1kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 32kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 32kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 32kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 32kHz

54 physical formats
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 384kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 352.8kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 44.1kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Integer 32kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 384kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 352.8kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer 32kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 384kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 352.8kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 32kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 32 little endian Signed Integer 32kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer 32kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 32kHz

Local devices found : 2
Device #0: ID 0x2e Built-in Output Manufacturer: Apple Inc. Model UID: AppleHDA:126 UID: AppleHDAEngineOutput:1B,0,1,1:0
Device #1: ID 0x42 McIntosh-HD HS USB Audio Manufacturer: McIntosh Model UID: McIntosh-HD HS USB Audio:2AFD:0002 UID: AppleUSBAudioEngine:McIntosh:D150:14200000:2

UPnP devices found : 0

5

Change this to ‘not MQA’

6

Where in Audirvana 3.5.5’s preferences would I find that option? I don’t see it under streaming. Thx!

7

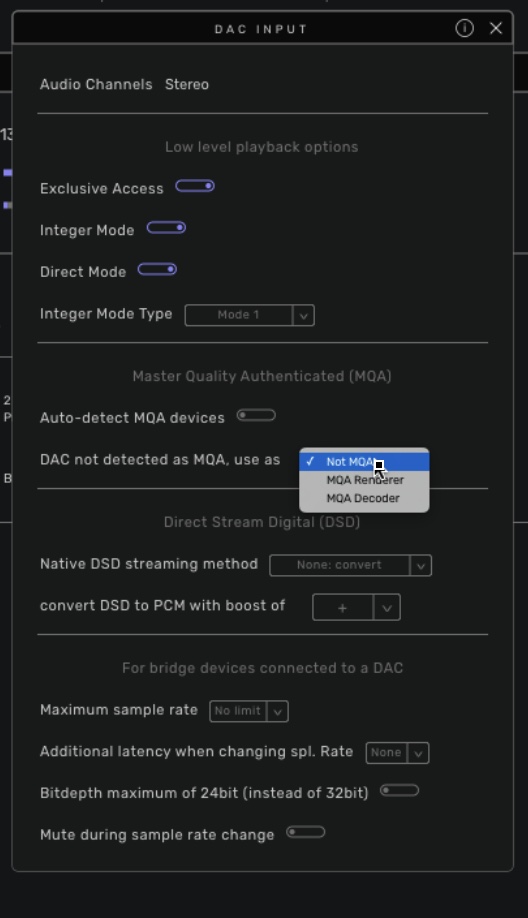

It’s with the DAC hardware. It’s about specifying whether the hardware can do it. Not about the streaming service. In Audirvana studio it looks like this. For 3.5 I have to boot a old laptop.

image528×918 62.9 KB

1 Like
8

I still have a 3.5. version installed.

You don’t find it under streaming. You will find it in the settings of your sound device in Audirvana 3.5.

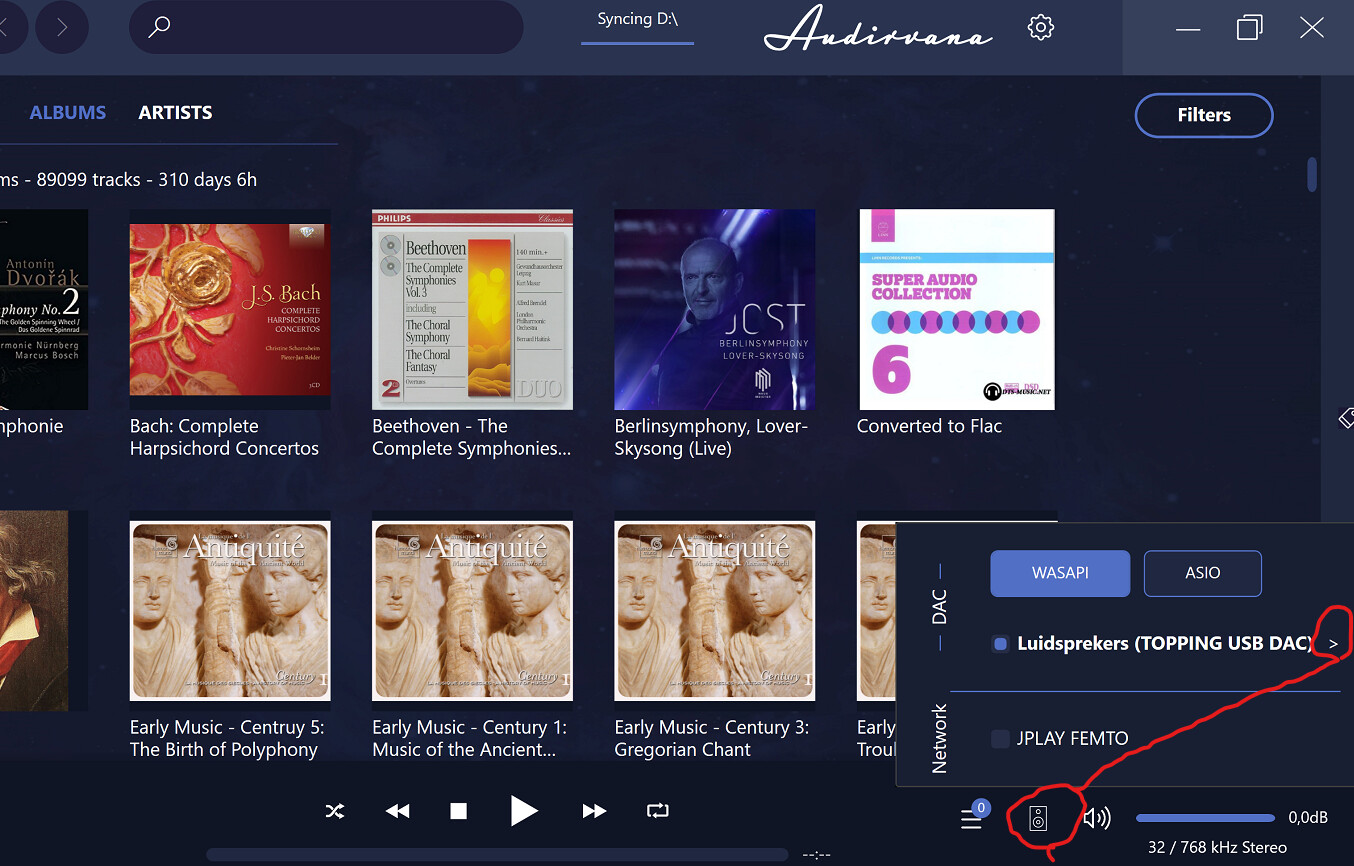

Click on the speaker icon below right. After that click on the ‘>’ sign next to the name of your Mcintosch device (on my screen it says ‘Topping’ because I don’t have a McIntosh):

image1354×866 286 KB

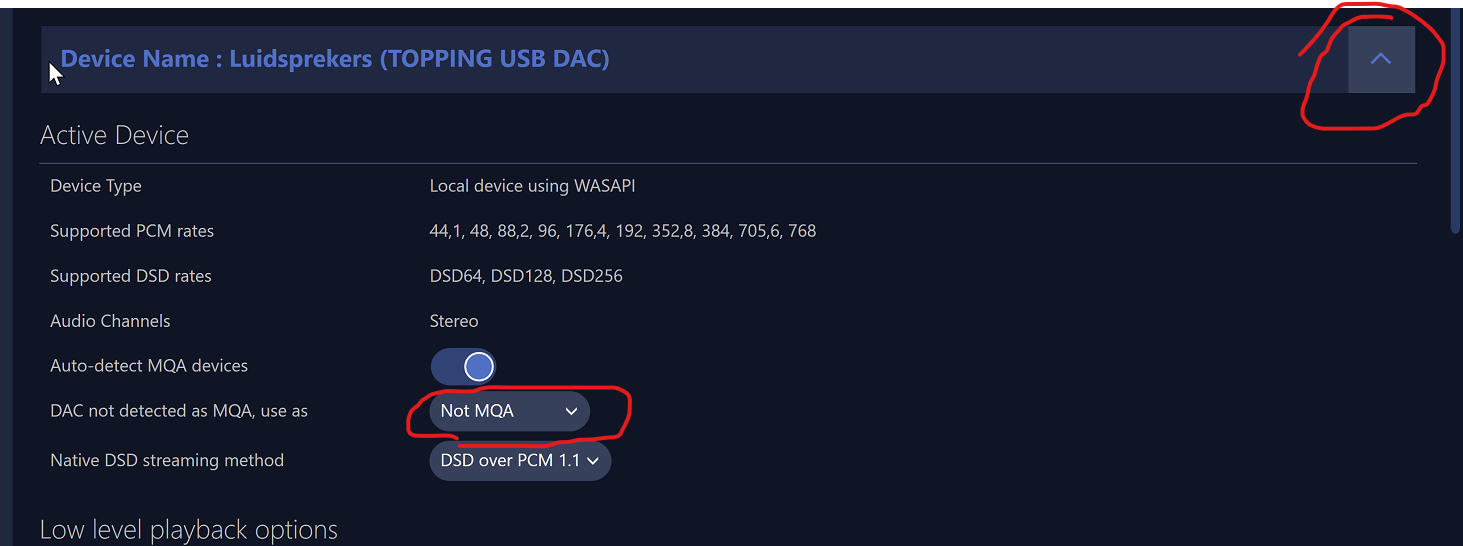

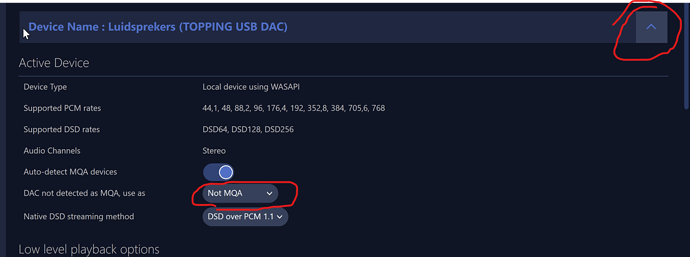

You see the next screen. In your case the title should be something like ‘McIntosh’ of course:

image1463×546 122 KB

Choose the ‘not MQA’ there.

NOTE: You have to stop playing music in Audirvana, otherwise you can’t change the settings of your sound device!

1 Like
9

Since it is not MQA, put auto-detect at off also…

2 Likes
10

The DAC finally sees the hi res files from Tidal. Thank you so much!
