No DSD output via optical

Kamin68 · March 7, 2023, 8:02am

Hello,
I searched the forums and the Internet but couldn’t find an answer.

I have a Douk AUdio Pro DAC (Douk Audio U2 PRO XMOS XU208 USB to COAX/OPT/HDMI Converter Digital In– doukaudio) connected to my Mac Studio (M1 Max). My DAC is connected to my amp via optical out. I tried many settings but no sound will come out of the device event though my DAC is DSD compatible.

Any suggestions?
Thanks

Here is my Debug info:
Audirvana Mac Version 3.5.50 (3580)
macOS 13.2.1 with 65536MB RAM

Licence enregistrée pour moi

SIGNAL PROCESSING:

Polarity Inversion:
	Globally: OFF
	Per track: ON
Effects plugins NOT ACTIVE

UPSAMPLING:
SoX not in use
SoX filter parameters
Bandwidth at 0dB = 99.5
Filter max length = 30000
Anti-aliasing = 100
Phase = 66

AUDIO VOLUME:
Max allowed volume: 100
Replay Gain: None
SW volume control: OFF

LIBRARY SETTINGS:
Sync list: 1 folders
AUTO: /Users/xx/Audirvana Albums
iTunes/Music library synchronization: not synchronized
Library database path: /Users/xx/Library/Application Support/Audirvana/AudirvanaPlusDatabaseV2.sqlite

ACTIVE STREAMING SERVICES

=================== AUDIO DEVICE ========================

CoreAudio audio path, buffer I/O frame size: 512

Max. memory for audio buffers: 39428MB

Local Audio Engine:
Exclusive access: Enabled
Integer mode: Enabled

Preferred device:
HIFI DSD
Model UID:HIFI DSD:20B1:0008
UID:AppleUSBAudioEngine:XMOS :HIFI DSD:8330000:1

Active Sample Rate: 352.8kHz
Hog Mode is off

Bridge settings:
Sample rate limitation: 384kHz
Sample rate switching latency: none
Limit bitdepth to 24bit: OFF
Mute during sample rate change: ON

Selected device:
Local audio device
ID 0x85 HIFI DSD Manufacturer:XMOS
Model UID:HIFI DSD:20B1:0008 UID:AppleUSBAudioEngine:XMOS :HIFI DSD:8330000:1

8 available sample rates up to 384000Hz
44100
48000
88200
96000
176400
192000
352800
384000
Audio buffer frame size : 106 to 4096 frames
Current I/O buffer frame size : 512
Volume Control
Physical: Yes
Virtual: Yes
MQA capability
Auto-detect MQA devices: Yes
Not a MQA device, user set to not MQA
DSD capability: DSD via PCM 1.1
Device audio channels
Preferred stereo channels L:1 R:2
Channel bitmap: Ox3, layout:
Channel 0 mapped to 0
Channel 1 mapped to 1

Audio channels in use
Number of channels: 2
Use as stereo device only: No
Simple stereo device: Yes

1 output streams:
Number of active channels: 2, in 1 stream(s)
Channel #0 :Stream 0 channel 0
Channel #1 :Stream 0 channel 1

Stream ID 0x86 2 channels starting at 1
24 virtual formats:
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 384kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 352.8kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 192kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 176.4kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 96kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 88.2kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 48kHz
2 ch Mixable linear PCM Interleaved 32 little endian Signed Float 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 384kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 352.8kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz

32 physical formats
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 384kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 352.8kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 192kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 176.4kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 96kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 88.2kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 48kHz
2 ch Mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 44.1kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 384kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 352.8kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 384kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 352.8kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 192kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 176.4kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 96kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 88.2kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 48kHz
2 ch Non-mixable linear PCM Interleaved 24 little endian Signed Integer aligned low in 32bit 44.1kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 384kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 352.8kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 192kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 176.4kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 96kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 88.2kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 48kHz
2 ch Non-mixable linear PCM Interleaved 16 little endian Signed Integer 44.1kHz

Local devices found : 7
Device #0: ID 0x93 ASUS PA279 Manufacturer: AUS Model UID: 06B36827-0000-0000-1720-0104B53C2278 UID: 06B36827-0000-0000-1720-0104B53C2278
Device #1: ID 0x76 SAMSUNG Manufacturer: SAM Model UID: 4C2D3B0D-0000-0000-011A-010380794478 UID: 4C2D3B0D-0000-0000-011A-010380794478
Device #2: ID 0x35 Realtek USB2.0 Audio Manufacturer: Generic Model UID: Realtek USB2.0 Audio:0BDA:402E UID: AppleUSBAudioEngine:Generic:USB Audio:200901010001:2,3
Device #3: ID 0x85 HIFI DSD Manufacturer: XMOS Model UID: HIFI DSD:20B1:0008 UID: AppleUSBAudioEngine:XMOS :HIFI DSD:8330000:1
Device #4: ID 0x70 Haut-parleurs Mac Studio Manufacturer: Apple Inc. Model UID: Speaker UID: BuiltInSpeakerDevice
Device #5: ID 0x44 MJAudioRecorder Manufacturer: MJ Audio Inc. Model UID: MJRecordDeviceModelUID UID: MJRecordDevice
Device #6: ID 0x56 ZoomAudioDevice Manufacturer: zoom.us Model UID: zoom.us.zoomaudiodevice UID: zoom.us.zoomaudiodevice.001

UPnP devices found : 0

bitracer · March 7, 2023, 8:18am

Optical output is not DSD capable.

Kamin68 · March 7, 2023, 12:21pm

Thanks, I didn’t know that.

Any recommandations to link my Mac Studio to my amp in order to play DSD files?

bitracer · March 7, 2023, 1:43pm

USB is your best bet. If you have multichannel amp then HDMI is also an option.

Kamin68 · March 7, 2023, 8:57pm

I only have RCA line in input and optical.

Am I out of luck or is there a way to use an adapter of some sort?

bitracer · March 7, 2023, 9:02pm

You can always convert DSD into PCM on the fly in Audirvana.

Kamin68 · March 7, 2023, 9:17pm

Yes I can. But by which means do I send the audio out to from may DAc to my amp since I only have opticaé and line in?

bitracer · March 7, 2023, 10:13pm

It will be sending PCM, so yo can send it via the optical cable. It will the depend on the max sampling rate supported on that interface though. It’s worth a try.

Kamin68 · March 8, 2023, 5:32am

Ok so we’re back with my original question.

I already set Audrivana to send via DoP (PCM 1.1) and I have no sound coming out. Evrythong worked fine when I was on iMac (2015), but not anymore with my Mac Studio.

Any ideas?

bitracer · March 8, 2023, 10:22am

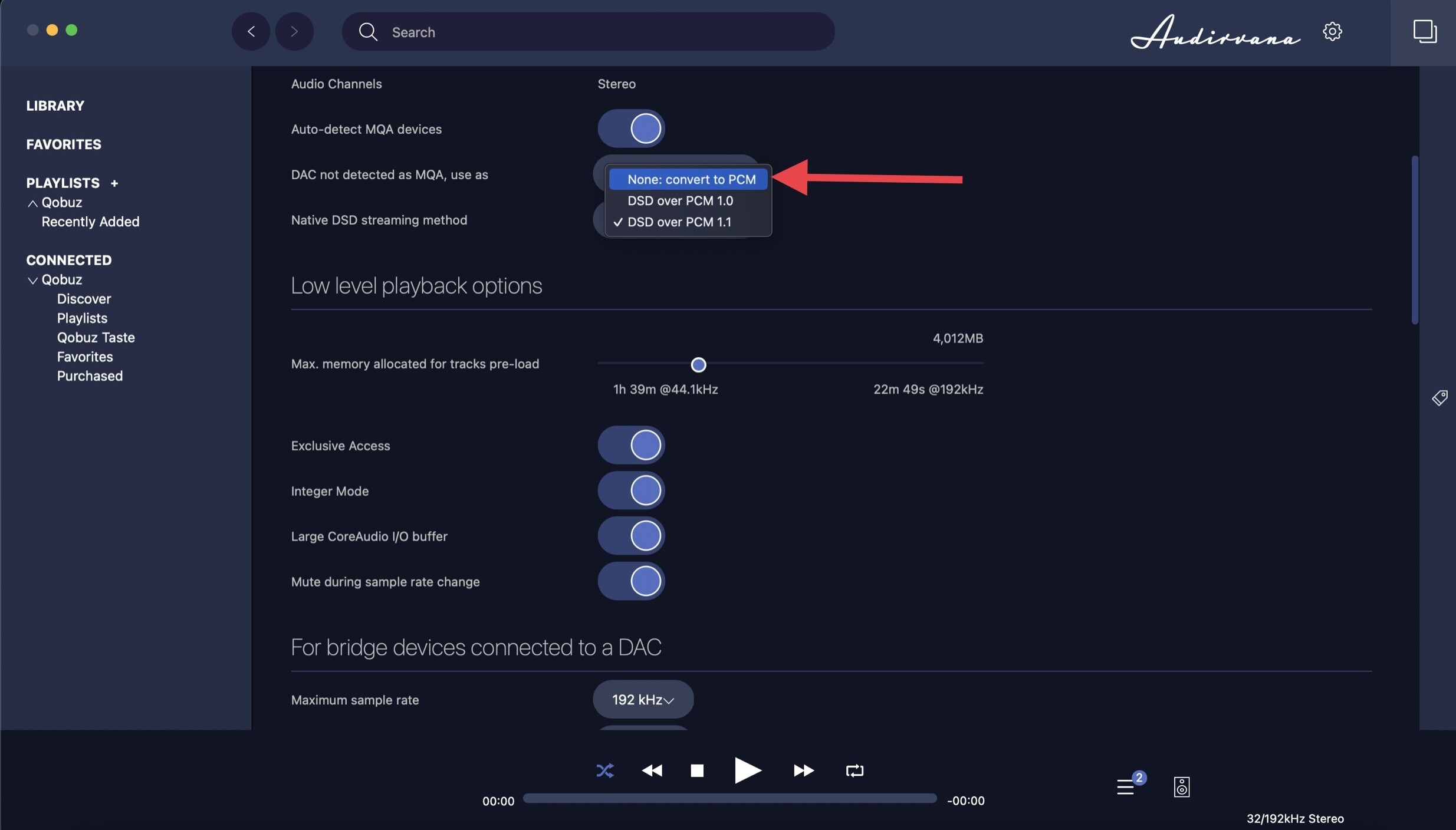

You need to set “convert DSD to PCM”.

Kamin68 · March 8, 2023, 10:28am

It is already set.

bitracer · March 8, 2023, 12:12pm

Not DoP. That’s DSD over PCM. It’s DSD encapsulated in PCM words. You need to really convert DSD to PCM.

Kamin68 · March 8, 2023, 1:36pm

Convert to PCM isn’t working either.

I must be missing something. Does my setting look ok to you?

Thanks for your help by the way

RunHomeSlow · March 8, 2023, 1:41pm

Can your turn hog mode on?

bitracer · March 8, 2023, 1:47pm

Reduce the pre-load cache to 4000MB.

Kamin68 · March 8, 2023, 2:22pm

Turned Hog mode on, same result and reduced pre-load cache. Here is my debug info updated:
